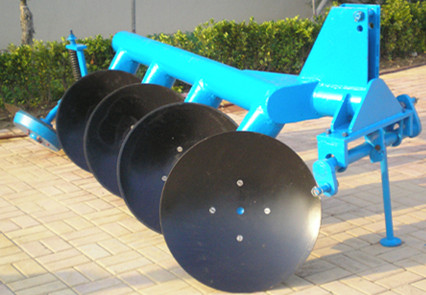

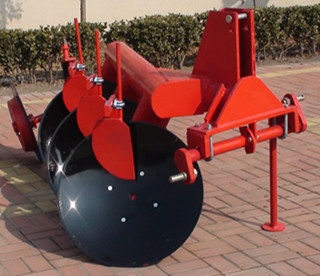

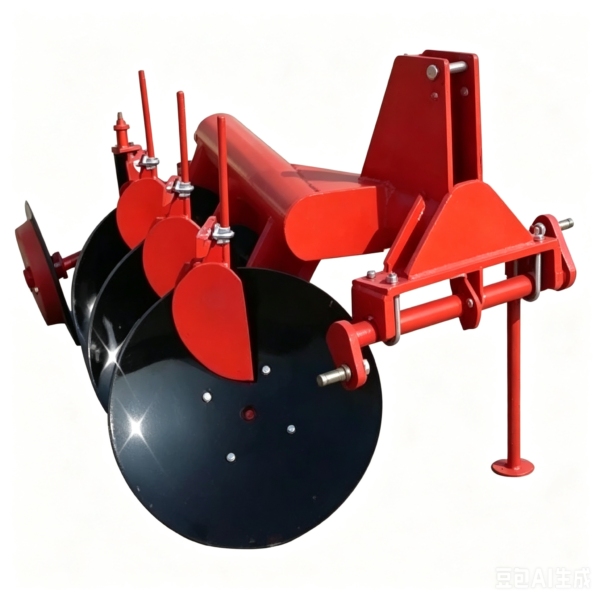

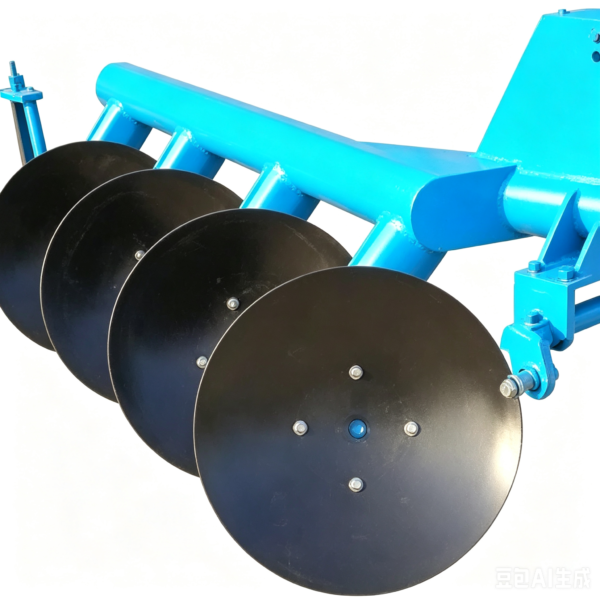

Circular Tube Disc Plough
MF Disc plough is matched with four-wheel tractor, the discs of plough are revolving to furrow the land during operation. The mounted disc plow is especially suitable for land which have weeds, stems and frictional soil with small brick etc.
The circular disc plow is connected to the tractor’s full suspension. During operation, the plow blades rotate to till the soil. It has advantages over moldboard plows, such as not getting tangled in weeds, not clogging, not causing soil buildup, being able to cut crop stems and roots, and having lower working resistance. It is particularly suitable for tilling farmland with complex conditions such as dense weeds, tall stems, high soil resistance, and soil containing brick and stone fragments.
Model
1LYX-230
1LYX-330
1LYX-430
1LYX-530
Width of cut (mm)
600
900
1200
1500
Depth of cut (mm)
250~300
Dia of disc (mm)
660
Q’ty of disc
2
3
4
5
Weight (kg)
300
440
490
550
Tractor power (hp)
40
60
100
130
Mounted cat
Cat II
FOB price(USD)
548
661
870
1048
