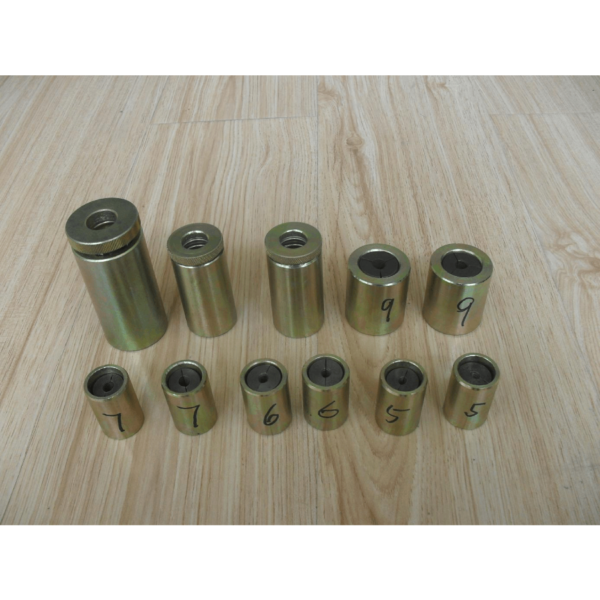

Barrel and Wedge for PC Wire

1. Materials: Alloy steel, carbon steel, cast iron, plastic.

2. Components: Anchor rings (anchor plates, anchor cylinders), inner wedges (clamps, clamps), pressure plates (bottom plates, back plates, pads), spiral clamps, limiting plates, connectors (joints), ducts (corrugated pipes), gaskets (partitions), etc.

3. Wide PC wire compatibility: Supports PC wires from 6.5mm to 21.8mm and various PC wires/strips.

4. Customizable types and sizes: Custom types and sizes can be made according to special requirements.

5. Certifications: We are a certified supplier of “Made in China” and “Global Sources,” and have passed the audits of BV and SGS, complying with the ISO9001-2008 quality management system standard.

6. Over 10 years of experience: More than 10 years of experience focusing on the production of prestressed steel products.

7. High production capacity: Weekly production capacity of up to 10,000 sets.

8. Multiple Hole Options: Available in 1 to 55 holes to meet various fixing requirements.

9. Wedge Hardness: HRC50-HRC65

Applications: Prestressed concrete components using pretensioning, such as precast beams, slabs, pipes, and railway sleepers.

Conforming to the following specifications: 7-strand prestressed steel strands: 9.3/9.5/9.53mm, 12.5/12.7/12.9mm, 15.2/15.24/15.7mm, 21.8mm; 3-strand prestressed steel strands: 6.5/8.6/10.8mm; Prestressed steel bar specifications: 4.0/4.8/5.0/6.0/7.0/7.5/8.0/9.0mm; Prestressed steel bar specifications: 5.0/6.0/7.1/9.0/25/32mm, etc.

Note: In precast and post-tensioned prestressed concrete, anchors play a crucial role. The prestressing effect depends on the load-bearing capacity of the anchors, and the performance of the anchors determines the safety of the prestressing.

Contact us for free samples
