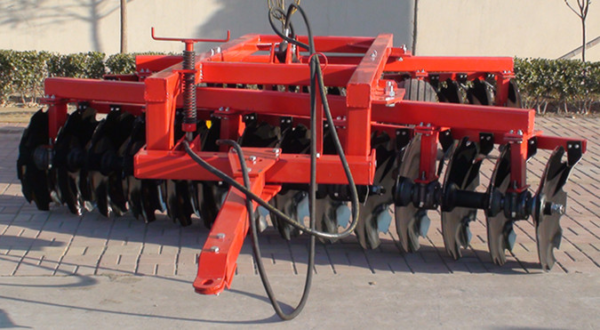

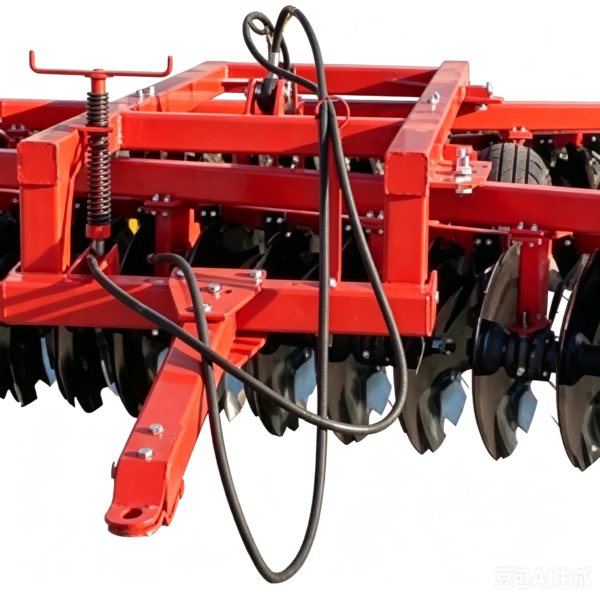

Heavy Duty Hydraulic Disc Harrow
1BZ series of Hydraulic offset heavy disc harrow is well suitable for heavy clay soil, waste land and weedy field as well, mainly suitable for stubble cleaning before farming .
It can break the hardened soil and return the chopped straw to the soil, and also can crash the soil after tillage and level the land. The heavy-duty disc harrow can cultivate the soil instead of plow.
| Model | 1BZ-1.8 | 1BZ-2.2 | 1BZ-2.5 | 1BZ-3.0 | 1BZ-3.4 | 1BZ-4.0 | 1BZ-5.3 |
| Width of cut (mm) | 1800 | 2200 | 2500 | 3000 | 3400 | 4000 | 5300 |
| Depth of cut (mm) | 200 | ||||||
| Dia of disc (mm) | 660 | ||||||
| Q’ty of disc | 16 | 20 | 24 | 28 | 32 | 36 | 48 |
| Weight (hp) | 1160 | 1250 | 1350 | 1430 | 1550 | 1900 | 2500 |
| Tractor power (hp) | 70 | 80 | 90 | 100 | 120 | 150 | 180 |
| FOB PRICE(USD) | 1620 | 1935 | 2193 | 2370 | 3483 | 4032 | 5581 |
