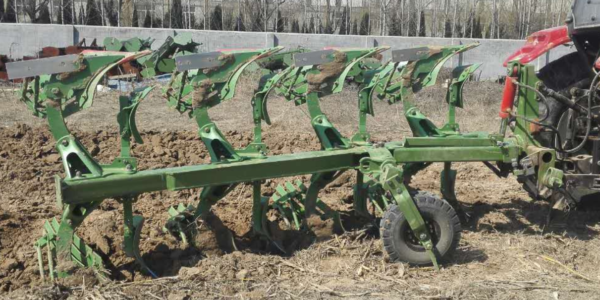

Hydraulic Reversible Plough

Hydraulic Reversible Plough is used in conjunction with the tractor, and the lifting and lowering of the plow and the turning of the plow are controlled by a double distributor. The main frame is welded with rectangular tubes made of special material. The plow posts, plow walls and plowshares are all made of high-quality 65Mn high manganese steel. After heat treatment, they have good wear resistance, elasticity and other comprehensive properties and a long service life. The hydraulic turning plow includes a suspension frame, a turning cylinder, a check mechanism, a ground wheel mechanism, a plow frame and a plow body. Through the expansion and contraction of the piston rod in the oil cylinder, the forward and reverse plow bodies on the plow frame are driven to perform vertical turning movements and alternately change to the working position; the ground wheel is a dual-purpose mechanism with a screw to adjust the plowing depth. The suspension frame is connected to the working main engine, and the plow body is connected to the plow frame through the plow column. A ground wheel mechanism is installed on the plow frame. The characteristic is that the cylinder body in the flip cylinder is hinged with the oil cylinder seat connected to the plow frame, and there is a piston rod in the cylinder body that performs telescopic movement. , a central shaft is fixed on the plow frame. The rear end of the central sleeve outside the central shaft is hinged with the piston rod. The front end passes through and is fixed on the suspension beam. The piston rod drives the central shaft to rotate in the central sleeve by connecting with the cylinder seat and the plow frame.
