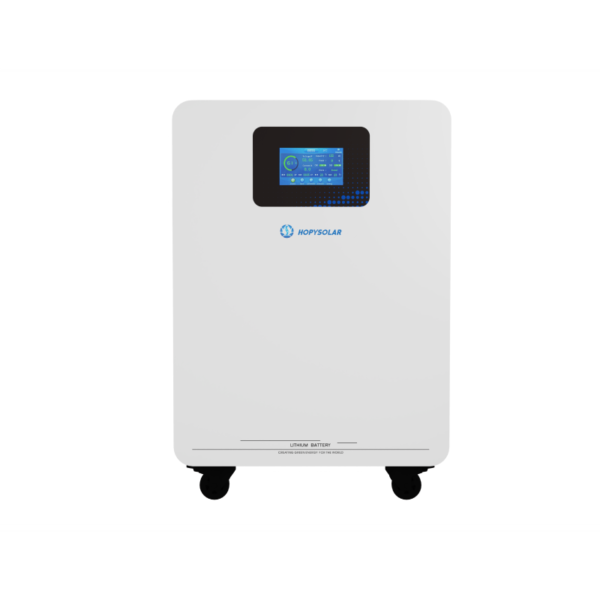

Lithium Battery（Roller-mounted）

1. Core Advantages
High energy efficiency, long lifespan, and intelligent management meet diverse energy storage needs for both residential and commercial use.

2. Key Performance Parameters (Enter actual values)
Capacity Range: 2.56kWh ~ 28.67kWh, flexibly matching different power consumption scales.

System Voltage: 25.6V / 48V / 51.2V (Supports lead-acid/lithium battery compatibility).

Cycle Life: ≥6000 cycles under 80% DOD, 0.5C, 25℃ conditions, durable and long-lasting.

Charge/Discharge Capacity: Maximum charging/discharging current up to 100A~200A, fast high-power response.

Efficiency and Protection: Intelligent BMS management, recommended DOD 80%~90%, extending battery life.

3. Installation and Design
Installation Methods: Wall-mounted (space-saving) / Caster floor-standing installation (flexible movement). Button type / Touchscreen type (choose either).

Protection Rating: IP20, safe for indoor use.

Product Dimensions and Weight: Multiple sizes available (e.g., 555*435*300mm, starting from 35kg), adaptable to different spaces.

4. Intelligence and Communication

Communication Interfaces: Standard CAN / RS485 / RS232, 4G, WiFi, and Bluetooth optional.

Remote Monitoring: Supports real-time monitoring of battery level and health status via APP.

Parallel Expansion: Supports up to 15 units in parallel for easy capacity expansion.

5. Quality Assurance

Warranty Period: 5 years

Certification Standards: Complies with CE, ISO, and other international certifications.
